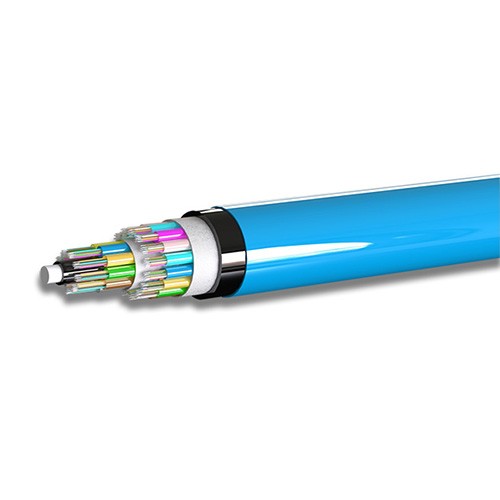

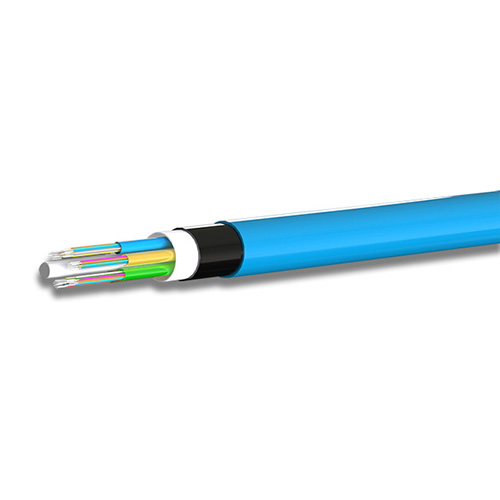

FOS nylon jacket dielectric loose tube cable is suited to external underground installations in ducts by pulling, jetting or floating techniques or by direct burial in open-cut trenches.
Loose tube cable offers a cost-effective and rugged solution for medium and long distance external fibre runs.
FOS nylon jacket loose tube cable is available in OM1, OM3, OM4 and G652.D Singlemode.
| Weight | N/A |
|---|---|
| Mode | Singlemode, OM1 Multimode, OM3 Multimode, OM4 Multimode |
| Core Count | 6 Fibre, 12 Fibre, 24 Fibre, 48 Fibre, 72 Fibre, 96 Fibre, 144 Fibre, 288 Fibre |

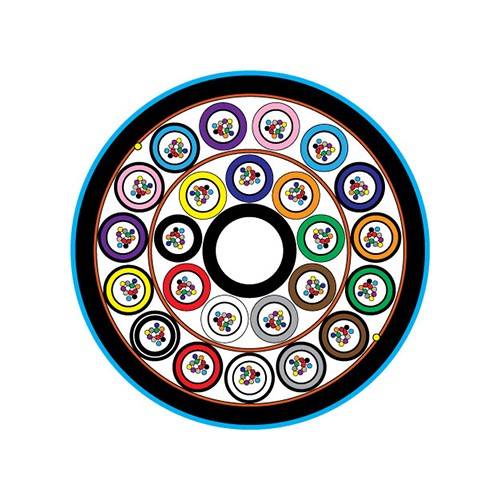

• Bonded double jacketed construction
• Insect resistant nylon outer and UV stabilised polyethelene inner jacket for long life in a wide range of installations
• Water swellable yarns provide protection against water ingress (dry core construction)
• Non-metallic construction
• Fibreglass reinforced polymer central strength member and glass yarn peripheral strength member provide excellent strength
• Flexible buffer tubes provide easy handling within termination enclosures
• Single layer SZ stranding limits stress on fibre tubes
• Fibre friendly thixotropic gel in tubes ensures fibre protection
• TIA 598 standard colour code
• 6 or 12 fibre tube constructions available (conditions may apply)
• 6 to 288 fibres
• Underground ducts
• Direct buried fibre links
• Inter-building links
• Campus fibre networks
• Infrastructure and industrial fibre links
| Fibre Type | OM1 | OM3 | OM4 | SM |
| Attenuation at 850nm (dB/km) | < 3.1 | < 3.0 | < 3.0 | n/a |
| Attenuation at 1300/1310 (dB/km) | < 1.0 | < 1.0 | < 1.0 | < 0.35 |
| Attenuation at 1550nm (dB/km) | n/a | n/a | n/a | < 0.21 |
| Attenuation at 1625nm (dB/km) | n/a | n/a | n/a | < 0.24 |
|
Bandwidth at 850nm
[1300nm] (MHz.km)
|
>200
[>500]
|
>1500
[>500]
|
>3500
[>500]
|
n/a |
See datasheet for further technical specifications
