Product Description
Fibre Optic Systems’ range of Fast Ethernet Fibre Media Converters allow for a simple intermediate link between traditional RJ45 based copper networks. This allows for a simple elimination of the 100 metre link length limit by substituting copper for fibre with an effective range of several kilometres. Fast Ethernet converters have an effective bandwidth of 100 Mbit and are typically employed in pairs to extend a LAN to a remote location.
Care should be taken when selecting the mode and connector type of your media converters to match installed fibre – ensuring distances are within the allowable range.
Features
• 100Mbits/s over duplex fibre

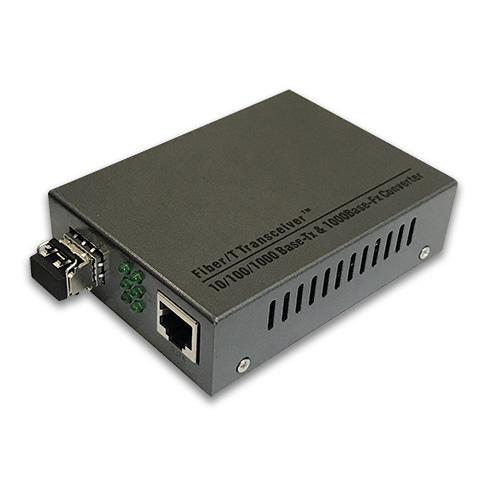

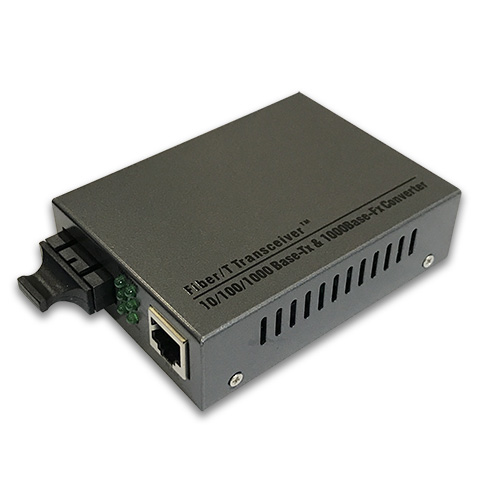

• Duplex LC/SC receptacle optical interface
• Hot-pluggable SFP footprint (LC models only)
• 1300nm Laser (MM) & 1310nm Laser (SM) transmitters
• RoHS compliant and Lead Free
• Up to 2km on 50/125μm MM Fibre & 10km on 9/125μm SM Fibre
• Metal enclosure for reduced EMI
• External +5V/1A power supply
• Commercial operating temperature range: -20°C to +50°C
• Complies with IEEE802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3Z, IEEE802.3X 10BASE-T, 100BASE-T standards
• Complies with IEEE802.1Q VLAN TAG, spanning tree standard
Applications
• 10/100BASE-T, 10/100BASE-TX
• 100BASE-LX10/100BASE-FX
• Long distance Ethernet networks
• Connecting remote sites or CCTV cameras
Specifications
• Complies with IEEE802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3Z, IEEE802.3X 10BASE-T, 100BASE-T standards
• Complies with IEEE802.1Q VLAN TAG, spanning tree standard
